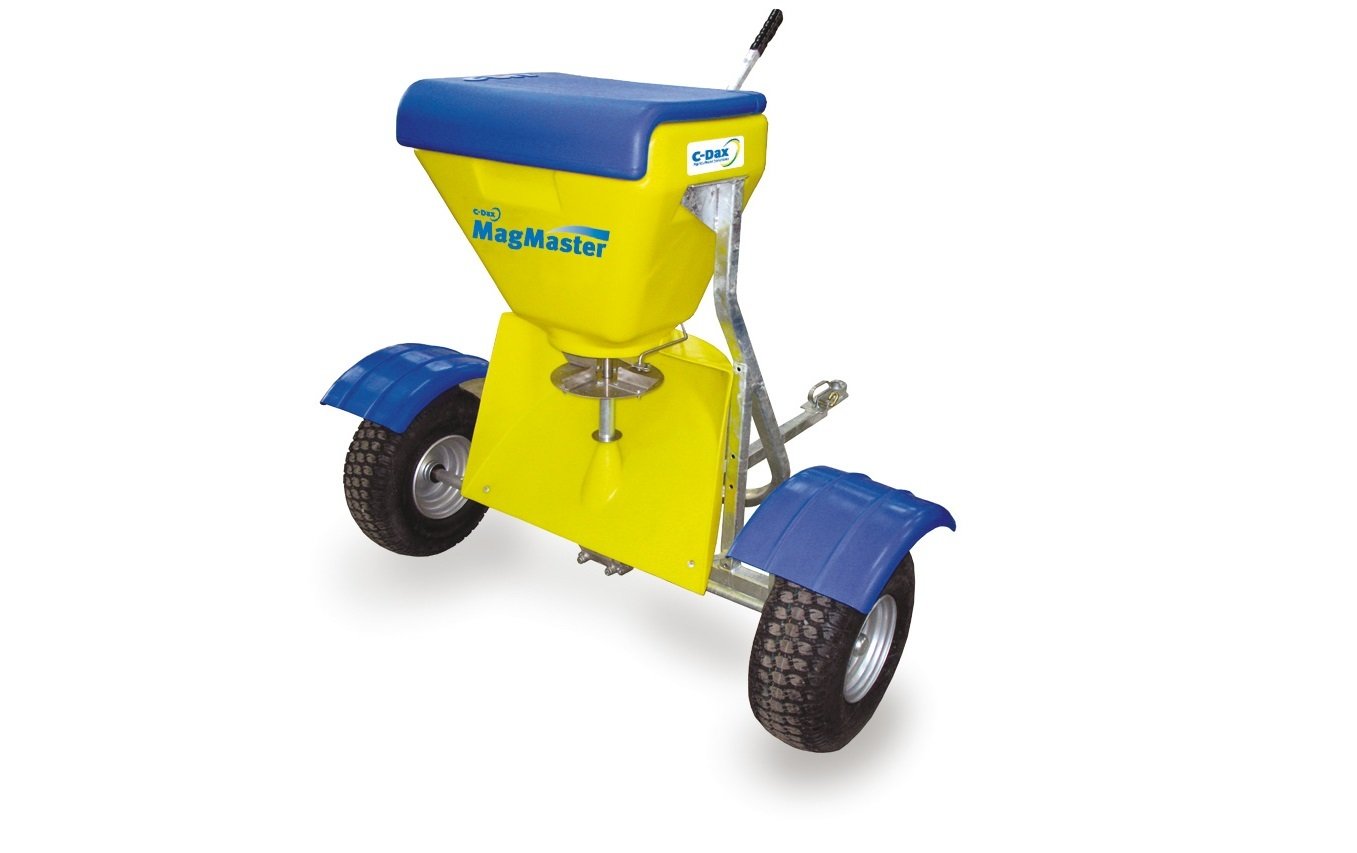

MagMaster 65 Mag Spreader
The C-Dax MagMaster is the only trailed spreader designed specifically for spreading magnesium based materials with our unique stainless spinner. A wide wheel track provides stability on uneven terrain, while the 65 litre hopper can carry enough magnesium for 800 cows. Five application rates are available to suit your particular requirements and the spread width covers 3m each run to make sure your time is used efficiently.
A galvanised and robust frame features a fully moulded spinner shroud to minimise drift onto the tow vehicle and operator.
- 65 Litre capacity—holds enough magnesium for 800 cows per day
- Notional 3m spread width at 10kph
- Five application rate settings (from 1.3 to 13g per sq/m at 10kph)
- Aggressive agitation with our purpose built stainless steel agitator prevents ‘bridging’ and ensures a consistent flow of material to the spinner
- Unique spinner disc design directs magnesium dust towards the ground
- Wide shroud to keep dust off the operator and ATV
- Strong galvanised frame
- Wide wheel track to provide the best stability on uneven terrain
- Waterproof hopper cover
- Protection shroud
- Mudguards fitted as standard
Weight: 62kg empty
Height: 1250mm
Width: 1300mm
Downloads
| Item No. | Description | Part No. | QTY | Unit |
| 1 | Agitator-Spreader-Causmag 65-SS | 1036-8230 | 1 | EA |
| 2 | Bearing-Ball-Pillow Block-Drive Axle-Spreaders | 1140-1200 | 1 | EA |
| 3 | Bearing-Housing-Pillow Block-Drive Axle-Spreaders | 1140-4000 | 1 | EA |
| 4 | Bracket-Drive-130L/MAG/165L-Spreaders-ZP | 1300-4100 | 1 | EA |
| 5 | Bracket-Handle Position-Index-RH-MM65-ZP | 1300-4550 | 1 | EA |
| 6 | Bracket-Mudguard-CDIT300/400/MM165-LH-GL | 1300-6800 | 1 | EA |
| 7 | Bracket-Mudguard-CDIT300/400/MM165-RH-GL | 1300-6801 | 1 | EA |
| 8 | Clip-R Type-Pin-2.5MM-ZP | 2050-7300 | 2 | EA |
| 9 | Cord-Arrestor-Hinged Spreader Lid | 2230-1100 | 1 | EA |
| 10 | Cover-Axle Shaft-62mm Long-Spreader 130L/165L/Magmaster-SS | 2250-1000 | 1 | EA |
| 11 | Drawbar-Magmaster 65-GL | 2550-1300 | 1 | EA |
| 12 | Fabricated-Plastic-Round-OD 25x9mm Long-Drilled-UHMPE | 2700-0750 | 1 | EA |
| 13 | Fastener-Bolt-Hex-8.8 Grade-M10x80-ZP | 2840-1080 | 1 | EA |
| 14 | Fastener-Bolt-Hex-8.8 Grade-M10x110-ZP | 2840-1110 | 4 | EA |
| 15 | Fastener-Bolt-Hex-8.8 Grade-M12x65-ZP | 2840-1265 | 1 | EA |
| 16 | Fastener-Grub Screw-Socket Head-M8x10-Stainless | 3010-0810 | 2 | EA |
| 17 | Fastener-Grub Screw-Socket Head-3/8×3/8-Stainless | 3010-5200 | 2 | EA |
| 18 | Fastener-Set-Screw-Hex-304 Grade-M8x20-Stainless | 3075-0820 | 4 | EA |
| 19 | Fastener-Machine-Screw-Pan-M5x12-Phillips-Stainless | 3090-0512 | 3 | EA |
| 20 | Fastener-Machine-Screw-Pan-M5x30-Phillips-Stainless | 3090-0530 | 1 | EA |
| 21 | Fastener-Nut-Nyloc-M5-Stainless | 3130-0105 | 1 | EA |
| 22 | Fastener-Nut-Nyloc-M8-ZP | 3170-0008 | 11 | EA |
| 23 | Fastener-Nut-Nyloc-M10-ZP | 3170-0010 | 7 | EA |
| 24 | Fastener-Nut-Nyloc-M12-ZP | 3170-0012 | 3 | EA |
| 25 | Fastener-Rivet-Blind-Truss Head-3/16x18mm-Aluminium | 3240-0018 | 18 | EA |
| 26 | Fastener-Set Screw-Hex-8.8 Grade-M8x30-ZP | 3290-0830 | 2 | EA |
| 27 | Fastener-Set Screw-Hex-8.8 Grade-M8x40-ZP | 3290-0840 | 4 | EA |
| 28 | Fastener-Set Screw-Hex-8.8 Grade-M8x50-ZP | 3290-0850 | 1 | EA |
| 29 | Fastener-Set Screw-Hex-8.8 Grade-M10x50-ZP | 3290-1050 | 2 | EA |
| 30 | Fastener-Set Screw-Hex-8.8 Grade-M12x25-ZP | 3290-1225 | 1 | EA |
| 31 | Fastener-Set Screw-Hex-8.8 Grade-M12x40-ZP | 3290-1240 | 2 | EA |
| 32 | Fastener-Washer-Flat-Heavy-M12x32x3-Galv | 3310-5012 | 1 | EA |
| 33 | Fastener-Washer-Flat-M8-ZP | 3310-6008 | 4 | EA |
| 34 | Fastener-Washer-Flat-M10-ZP | 3310-6010 | 1 | EA |
| 35 | Fastener-Washer-Flat-M12-ZP | 3310-6012 | 2 | EA |
| 36 | Fastener-Washer-Flat-3/16″x1″-ZP | 3310-9104 | 1 | EA |
| 37 | Fastener-Washer-Flat-3/16 | 3310-9210 | 4 | EA |
| 38 | Fastener-Washer-Flat-23.5×2″x1.5-Grade 304-Stainless | 3310-9750 | 1 | EA |
| 39 | Frame-Spreader-Magmaster 65-GL | 3500-5800 | 1 | EA |
| 40 | Gearbox-Ferroni-RV12-2-6-Ratio 1 to 3.25 | 3800-2000 | 1 | EA |
| 41 | Grip-Handle-7/8 | 3865-3800 | 1 | EA |
| 42 | Handle-Magmaster 65-ZP | 4050-1300 | 1 | EA |
| 43 | Linkage-Shutter-Magmaster 65-ZP | 5050-7920 | 1 | EA |
| 44 | Machined-Shaft-Axle-Magmaster/Spreader 165-ZP | 5200-6700 | 1 | EA |
| 45 | Nipple-Grease-Straight-Short-M6-ZP | 5270-0003 | 1 | EA |
| 46 | Pin-Locking-6x50mm-ZP | 6100-4820 | 1 | EA |
| 47 | Pin-Locking-8x45mm-Snapon Pipe-ZPG | 6100-4840 | 1 | EA |
| 48 | Profiled-Index-Plate-MAG/130L/165L Spreader-ZP | 6500-4201 | 1 | EA |
| 49 | Profiled-Shutter-Magmaster-Spreader-Stainless | 6500-7800 | 1 | EA |
| 50 | Profiled-Washer-Spinner Shaft-34.9x67x2mm-Stainless 304 | 6500-9000 | 1 | EA |
| 51 | Rota-Hinge-LH-SM70/75,Magmaster-Blue-MDPE | 7500-2000 | 1 | EA |
| 52 | Rota-Hinge-RH-SM70/75,Magmaster-Blue-MDPE | 7500-2010 | 1 | EA |
| 53 | Rota-Hopper-Spreader-Magmaster 65L -Yellow-MDPE | 7500-2180 | 1 | EA |
| 54 | Rota-Lid-Hopper-SM70/75L,MagM-Blue-MDPE | 7500-2520 | 1 | EA |
| 55 | Rota-Mudguard-Blue-MDPE-1/4 Circle | 7500-2590 | 2 | EA |
| 56 | Rota-Shroud-Spreader Magmaster 65L-Yellow-MDPE | 7500-2700 | 1 | EA |
| 57 | Spinner-Magmaster 65-SS | 8200-5000 | 1 | EA |
| 58 | Spinner-Mount-Magmaster 65-ZP | 8200-5100 | 1 | EA |
| 59 | Spring-Compression-Crinkle Plate-ZP | 8250-1800 | 1 | EA |
| 60 | Tow-Coupling-Handle-Double Ended-1 7/8 | 8800-3800 | 1 | EA |
| 61 | Wheel-Turf-DRILLED-DRIVE-18x750x8-Tubeless | 9200-8610 | 1 | EA |
| 62 | Wheel-Turf-Bearing-18x750x8-Tubeless | 9200-8600 | 1 | EA |
